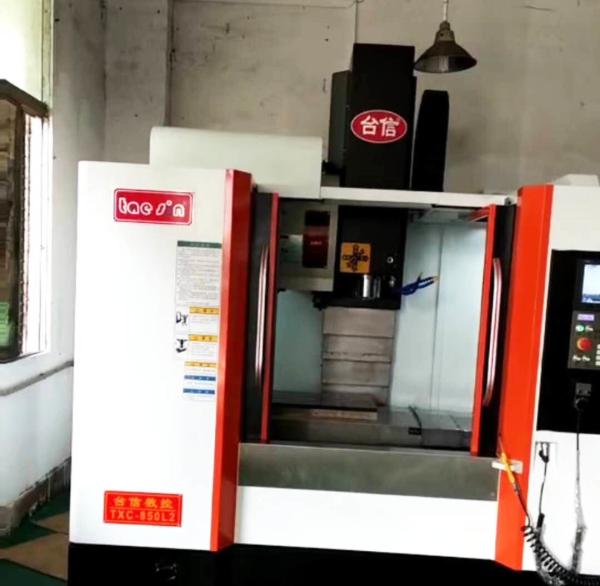

10000 RPM High Speed CNC Vertical Machining Center Internal Rib Structure

High Precision CNC Vertical Machining Center Features:

CNC Vertical Machining Center use the EU Class-p linear way to provide precision and heavy loading, fast traverse and accurate positioning. With 6 sliders on the linearway, the machine stability can be increase by 60%, comparing with traditional one.

In order to guarantee the spindle precision, the column for supporting headstock is made with rib reinforced structure for stability and no deformation. The super wide base, box type column and longer&wider saddle can also provide support for heavy loading.

For ensuring the quality, the CNC Vertical Machining Cernter has gone through the following inspection:

Ball bar for circulation; Working table hardness; Laser detection; Parallelism inspection between working table and X axis guide way; Spindle center line deviation inspection; Process testing; Three-coordinate measuring inspection; Dynamic balance inspection.

Taesin CNC Vertical Machining Center can achieve the whole machining process with just one-time setup and operation, which can increase the productivity and save much time. This comes from the advanced CNC system, and the brand Mitsubishi, Siemens or Fanuc are available.

This CNC Vertical Machining Center can be used in many industries, for example: plastic mold, automotive, aerospace, electronic and etc. industries. With the CNC machine, you can increase the productivity, save a lot of time and produce superior finished surface.

X/Y/Z Axis with European Class-P Linear guide way (45mm) provides heavy loading, fast traverse and precise positioning

Rib-structure Spindle Holder for increased processing rigidity

uper-wide base, box-type column, longer and wider saddle-base, full support design to improve heavy-loading capability.

High Rigidity Direct-connected High-speed Spindle: 12000RPM

X/Y/Z Axis Traverse Speed: 48/48/48m/min

Fast Tool Change System: 2.0S (24T Disc too magazine)

Taiwan high-speed Linear Guide Way, X/Y Axis Ball type (30mm), Z Axis Roller Axis (35mm)

High strength and rigidity meehanite casting is treated with annealing for stress relieving; and more than 1.5 years natural aging brings no deformation

High Precision CNC Vertical Machining Center Technical Data:

     Dongguan Taesin CNC Technology Co., Ltd specializes in the R&D, production and sales of CNC Machinery, including Vertical Machining Center, Horizontal Machining Center, Vertical Drilling&Tapping Machine, High-speed Engraving and Milling Machine, Double Column Machining Center.

     Taesin CNC Machines are designed and crafted into a master piece of art. Every single one of our machines is designed to have at least 20 year life span. The stability and duration after long-lasting work depend on Taixin’s focus on every technical detail, innovation and sustainable development. Taixin’s business philosophy--"Responsibility, Creativity, Honesty, Faith, Diligence, Fairness and Law" ensures the strict quality management and assurance.

     Taesin CNC Machines feature in high rigidity, enduring precision, efficiency And optimum stability. Taixin's wide range of CNC Machines allows us to cater to various demands of all industries such as locomotive, aerospace, 3C, medical, mold etc. Industry

      Customers are welcomed to come to our factory to find out what Taixin can do to meet your machining needs.
