BT30 Spindle Taper CNC Vertical Drilling Machine 6 Point Support Time Saving


CNC Vertical Drilling Machine Characteristics :
CNC Vertical Drilling Machine is also named as CNC Vertical Tapping Machine, which is fully automatic production system including automatic material handling and broken tool detection. The spindle axis servo motor is mounted in line with the spindle to minimize inertia and deal with less than 5s tap cycles. The work area is totally enclosed when the machine is operating.
Rib-structure Spindle Support for Stability
Super-size Column without Deformation at Traverse Speed 60m/min
Back Iron Chip Removal Design, Compact Design and Structure for Delivered by Elevator.
Super-wide Base with 6-point Support: No Vibration and No Deformation
X/Y/Z Traverse Speed: 60m/min: High Speed and Time Saving
21T Magazine: Fast and Precise Tool Change
Low Inertia Spindle Design: High Stability, Fast and Precise Tool Change:2.0S
Also Can be Used for Small Diameter Hole Processing
High Efficient AC Servo Motor and Man-machine Interaction for Easy Operation
Directly-connected Spindle with High Efficiency, and Without Belt Drive Error
Super Wide Saddle Base
X/Y/Z Two-plate Shield Design to Reduce the Impact and Noise


CNC Vertical Drilling Machine Core Components:
Japan Mitsubishi, Fanuc or Germany Siemens CNC control system
Japan Mitsubishi, Fanuc or Siemens spindle motor, 3 axes motor
Taiwan Famous Brand Spindle
Taiwan HIWIN and PMI Guideway and Ball Screw
Taiwan Famous Brand 24T Tool Magazine
Japan NSK Bearings


CNC Vertical Drilling Machine Installation and Testing:
Our engineer provide free installation and testing, and train local operator and mechanic; Buyer should bear the cost of flight ticket, food and hotel.
Technology Support: According to the finished product features, engineer will adjust related CNC machine parameters and train local operator and mechanic.
Guarantee: 12 Months after successful running; Any damage because of quality during 12 months, Seller will be responsible and provide the parts for free.
Within 24 Months, we provide software technology consulting service.
Spare Parts Supply: For providing better service, our company would like to provide the spares parts at the cost price.


CNC Vertical Drilling Machine Technical Data:

     Dongguan Taesin CNC Technology Co., Ltd specializes in the R&D, production and sales of CNC Machinery, including Vertical Machining Center, Horizontal Machining Center, Vertical Drilling&Tapping Machine, High-speed Engraving and Milling Machine, Double Column Machining Center.

     Taesin CNC Machines are designed and crafted into a master piece of art. Every single one of our machines is designed to have at least 20 year life span. The stability and duration after long-lasting work depend on Taixin’s focus on every technical detail, innovation and sustainable development. Taixin’s business philosophy--"Responsibility, Creativity, Honesty, Faith, Diligence, Fairness and Law" ensures the strict quality management and assurance.

     Taesin CNC Machines feature in high rigidity, enduring precision, efficiency And optimum stability. Taixin's wide range of CNC Machines allows us to cater to various demands of all industries such as locomotive, aerospace, 3C, medical, mold etc. Industry

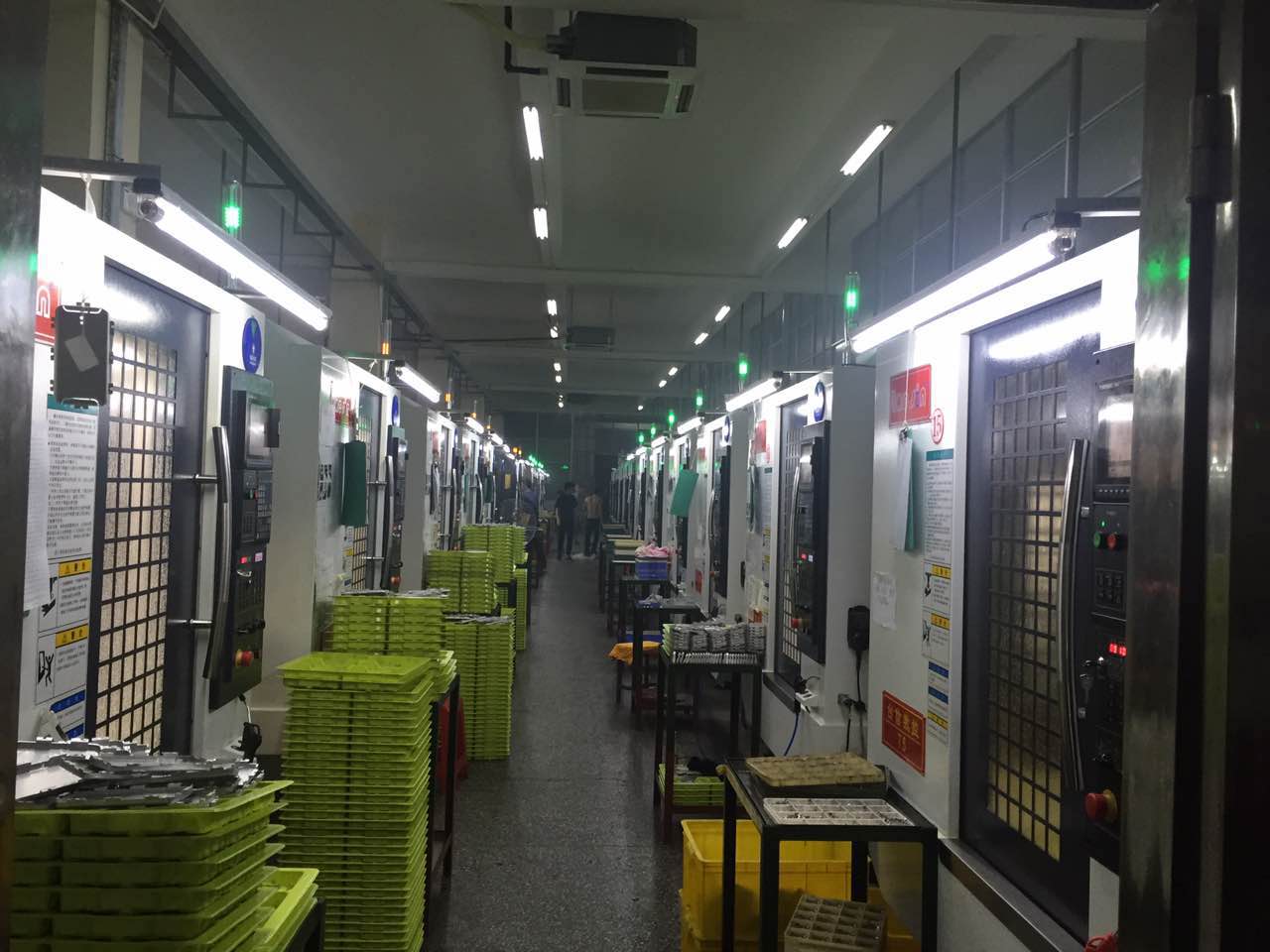

      Customers are welcomed to come to our factory to find out what Taixin can do to meet your machining needs.
