Super Size Column CNC Center Drilling Machine 60m/min Rapid
Traverse Speed

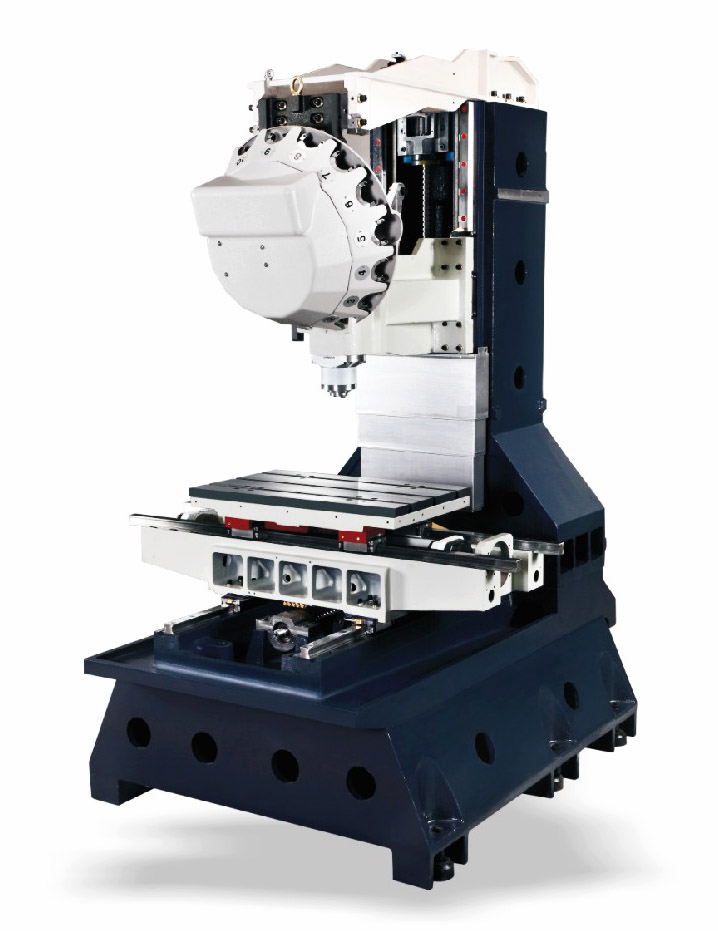

T6 CNC Drilling and Tapping Machine Characteristics:
Taesin CNC Drilling Machining Center has used the T-type structure
for higher rigidity and higher precision. And there is almost no
vibration and no deformation. And this machine can also provides
higher cutting and drilling capability and advanced technology
For continous pursuit of best quality and service, we have kept
pace with modern demands of machining industry and update the
technology. And we also would like to provide innovative and
efficient solution to customers. For your production, Taesin CNC
Machine can provide high quality and optimal machining to
customers. For meet different machining requirements, Taesin has
developed different size CNC Center Drilling Machine for providing
highest productivity.
Super-size Column without Deformation at Traverse Speed 60m/min
Super-wide Base with 6-point Support: No Vibration and No
Deformation
X/Y/Z Traverse Speed: 60m/min: High Speed and Time Saving
Low Inertia Spindle Design: High Stability, Fast and Precise Tool
Change:2.0S; Also Can be Used for Small Diameter Hole Processing
High Efficient AC Servo Motor and Man-machine Interaction for Easy
Operation.
T6 CNC Drilling and Tapping Machine Technical Data:
| Technical Data | T5 | T6 |
| X/Y/Z Axis Travel mm | 500/400/300 | 800/500/500 |
| Working Table Size mm | 400*650 | 700*420 |
| Max Load (KG) | 250 | 250 |
| Spindle Tool to Working Table mm | 150-450
| 150-450
|
| T-slot | 3-14*100 | 3-14*125 |
| Rapid Traverse Speed m/min | 60 | 60 |
| Cutting Feed Rate mm/minute | 1-12000 | 1-12000 |
| Spindle Motor KW | 5.5 | 5.5 |
| Spindle Speed rpm | 20000 | 20000 |
| Positioning Accuracy mm | ±0.003/300 | ±0.003/300 |
| Repeated Positioning Accuracy | ± 0.0025mm | ± 0.0025mm |
| Weight kg | 3000 | 4000 |
| Size mm | 1900*2700*2400 | 2300*2900*2500 |
T6 CNC Drilling and Tapping Machine Technical Service
Installation and Testing: Our engineer provide free installation
and testing, and train local operator and mechanic;
Buyer should bear the cost of flight ticket, food and hotel.
Technology Support: According to the finished product features,
engineer will adjust related CNC machine parameters and train local
operator and mechanics.
Guarantee: 12 Months after successful running; Any damage because
of quality during 12 months,
Seller will be responsible and provide the parts for free. Within
24 Months, we provide software technology consulting service.
Spare Parts Supply: For providing better service, our company would
like to provide the spares parts at the cost price.
