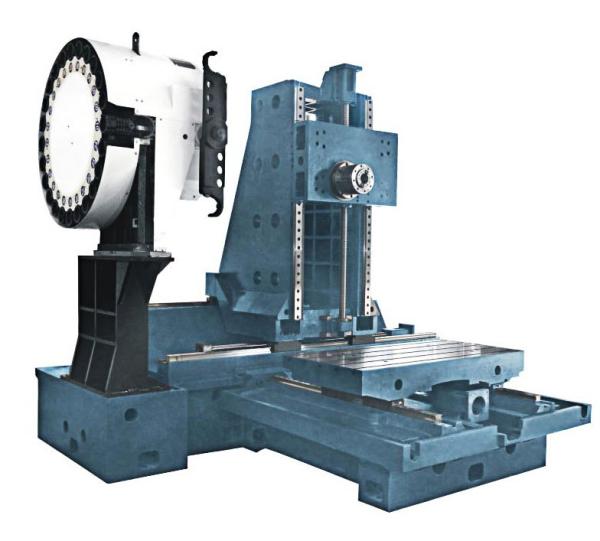

6000 RPM Horizontal Milling Center Super Efficiency Powerful
Cutting Capability
Powerful Cutting Capability Horizontal CNC Machine Features:
Horizontal CNC Machine Powerful Cutting Capability with Excellent
Precision and Performance Makes Drilling and Milling Easy High
Speed, Super Precision and More Reliable Structure; High rigidity,
Super Efficient, High Torque and Heavy Cut Features; Make Full Use
of Higher Productivity and Precision Processing;
Horizontal CNC Machine anti-collision Design to Prevent Nut Base,
Motor Base and Bearing Base from Colliding with Each Other for
Protect the Machine Precision
One-piece Oil-water Separation System Ensures that Polluted
Lubricant and Coolant Flow Back Separately, and prevent the coolant
from being polluted
Newly-designed and Fully-sealed Cover: Safe and Convenient
X/Y/Z Feeding Drive System: High-torque Servo Motor Directly
Connected with Φ50 Ball Screw by Coupling; Both Ends of Ball Screw
are Fixed and Pre-stretched. High Transmission Rigidity Structure
Ensure the Positioning Precision.
Exquisite adjustment by the servo motor and improved driven unit in
the Z axis: good processing surface at the high machining speed.
Completely sealed processing house:
This house can reduce the noise and prevent the chips and coolant
from coming out, moreover brings safety to machine operator. The
X/Y/Z Axis cover can protect the internal structure (ball screw and
guide way) by blocking the chips, cutting oil or gas.
Powerful Cutting Capability Horizontal CNC Machine Technical Data:
| Technical Data | TXM500 | TXM630 | TXM800 |
| X/Y/Z Axis Travel mm | 900/800/800 | 1000/850/800 | 1150/1000/1000 |
| Working Table Size mm | 500*500 | 630*630 | 800*800 |
| Max Load (KG) | 600 | 800 | 1200 |
| Spindle to Working Table (mm) | 0-800 | 175-976 | 80-1080 |
| Spindle to Working Table Center mm | 125-925 | 120-970 | 130-1130 |
| T-slot | 5-14*100 | 5-18*100 | 9-22*100 |
| Spindle Taper | BT50 | BT50 | BT50 |
| Max Rotary Table Speed R/Min | 5R/Min | 10R/Min | 10R/Min |
| Tool Magazine | 24 | 24 | 24 |
| Spindle Speed rpm | 6000 | 6000 | 6000 |
| Positioning Accuracy mm | 0.01 | ±0.012 | ±0.012 |
| Repeated Positioning Accuracy | 0.006mm | 0.008mm | 0.008mm |
